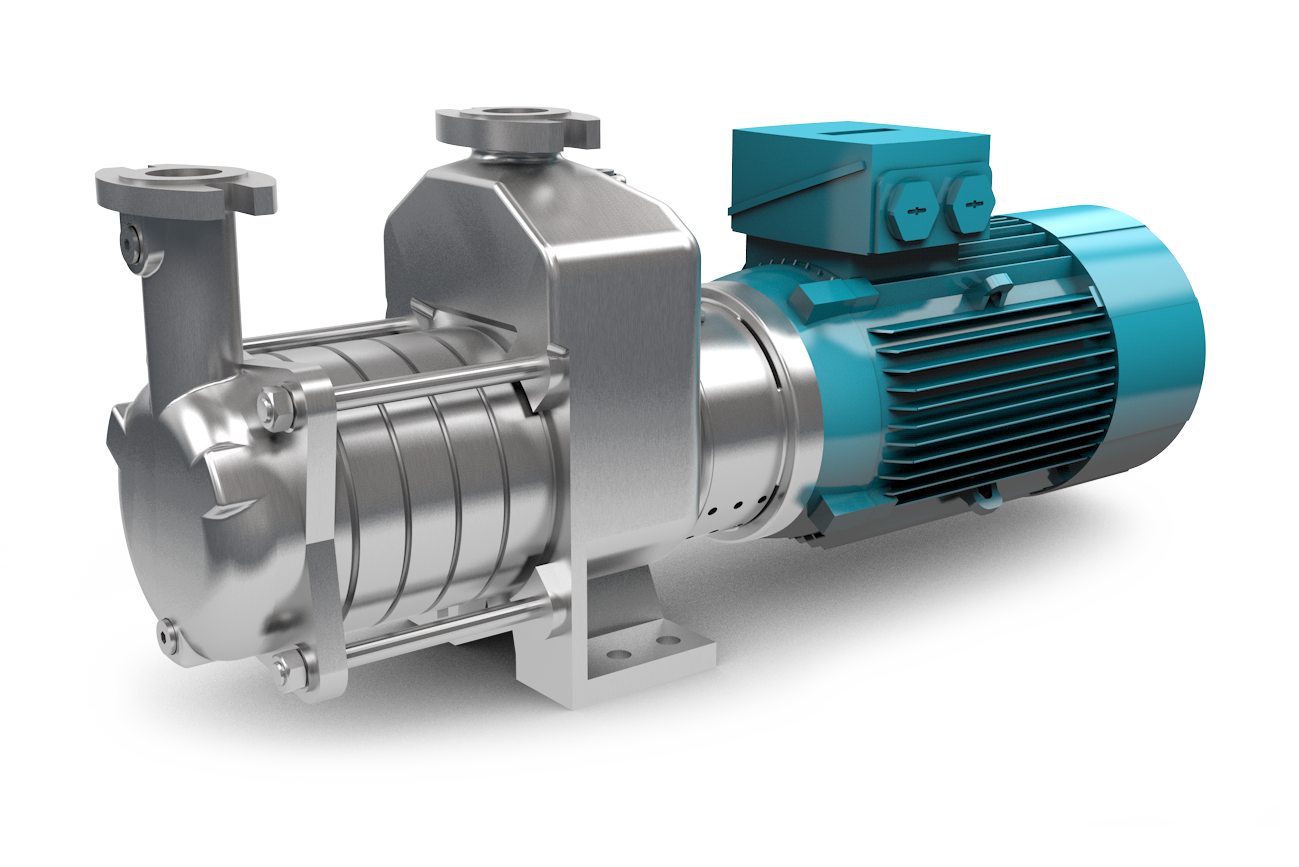

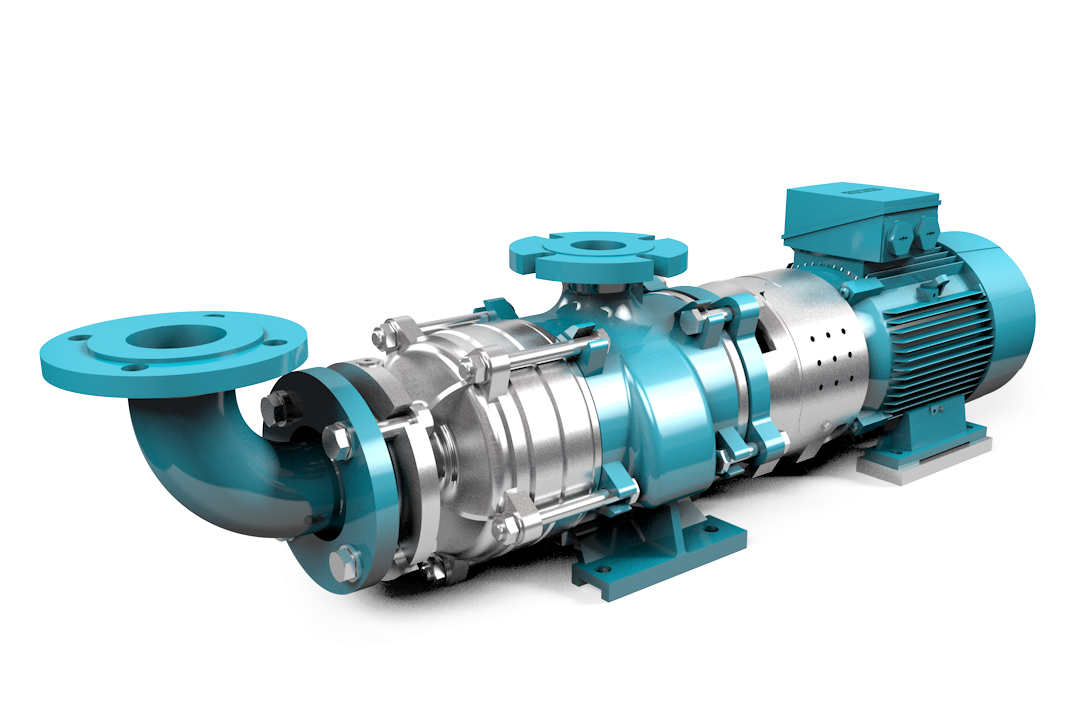

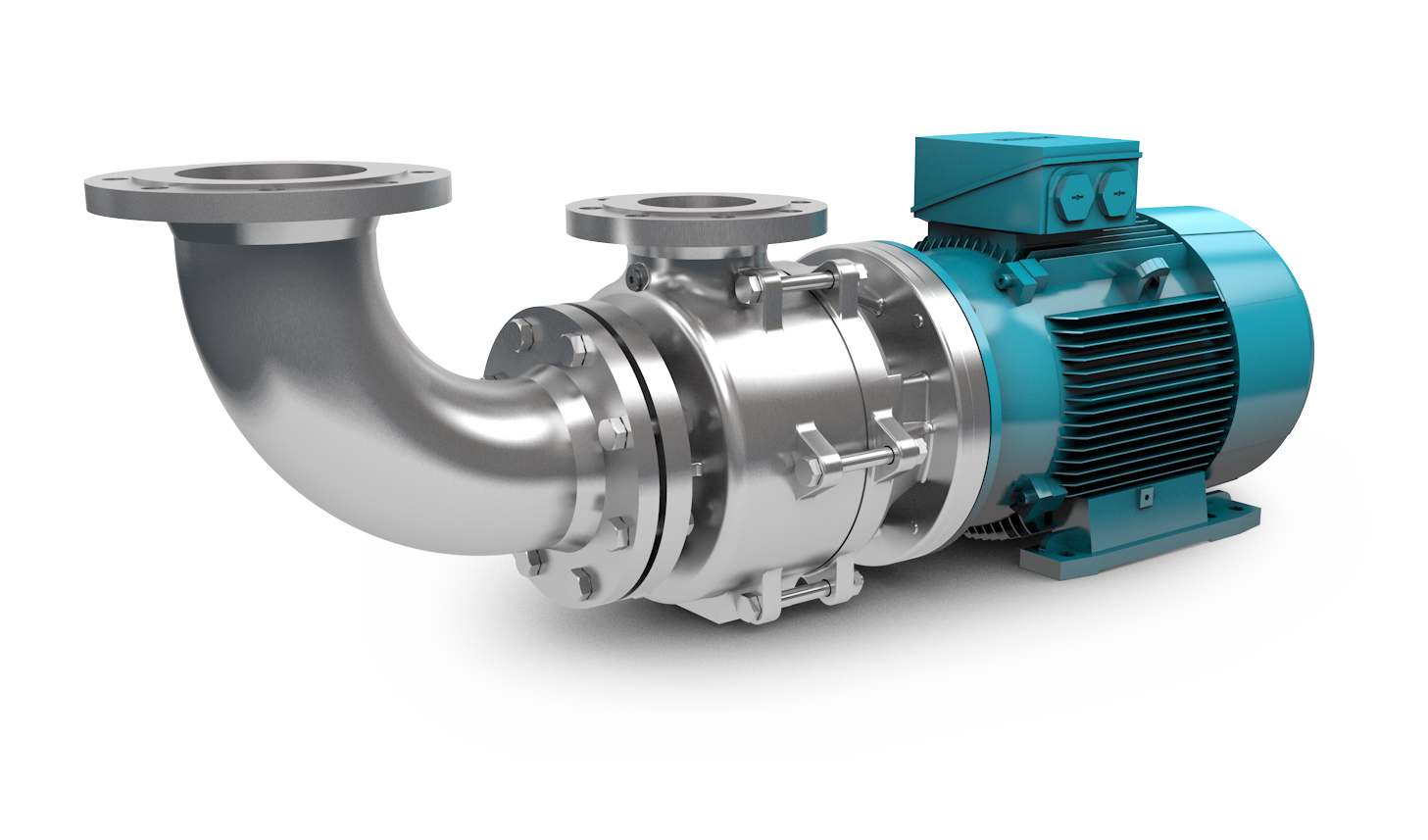

Self-priming Pumps
Compared to the non self priming pump, the self priming pump can empty the gas in the inlet pipe and pump the liquid into the lower position. Reliably solves the problems caused by valve defects and the vaporization of the liquid part of the problem. Evacuation time is short, high efficiency and no fault operation, high life cycle low cost. Suitable for pumping clean and lightly contaminated liquids, for water supply, dehydration, pressurization systems and irrigation.
-
Self-priming Pumps-E -
SBE503 -
SUB
- Advantages

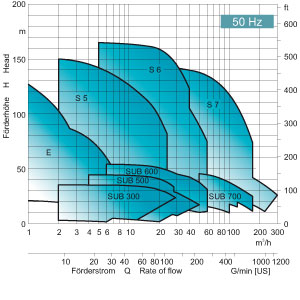

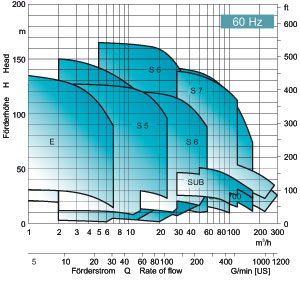

- Performance curves
- Technical Support
|
◇High
energy-efficiency Integrated jet pump or mixture formation Low velocity of flow Optimized impeller approach flow Low internal friction losses Optimized head per stage ◇Easy installation Modular construction system for customized solutions Horizontal design Bloc-or bedplate design ◇Easy maintenance |
◇Technical
superiority Open impellers without axial thrust or balanced Closed impellers Compensation of radial forces by means of diffuser Devices in the annular casing Process reliability Self priming capability Partial gas supply Wide performance curve characteristics Flat or steep characteristic curves ◇Application Operating pressure up to 16 bar Temperature -40℃ up to +90℃ Viscosity up to 115mm2/s |
