Multistage Pumps
Multistage horizontal and vertical high pressure pumps in segmental type design with many variants for clean and lightly polluted liquids. Main applications are booster systems, irrigation systems, boiler feed and condensate systems, washing plants, filter technique, water treatment and hardening systems. By means of auxiliary NPSH stages NPSH-values up to 0.5m are being achieved.
-
LBU /VBU /NHP /Z series -
NHE406B -

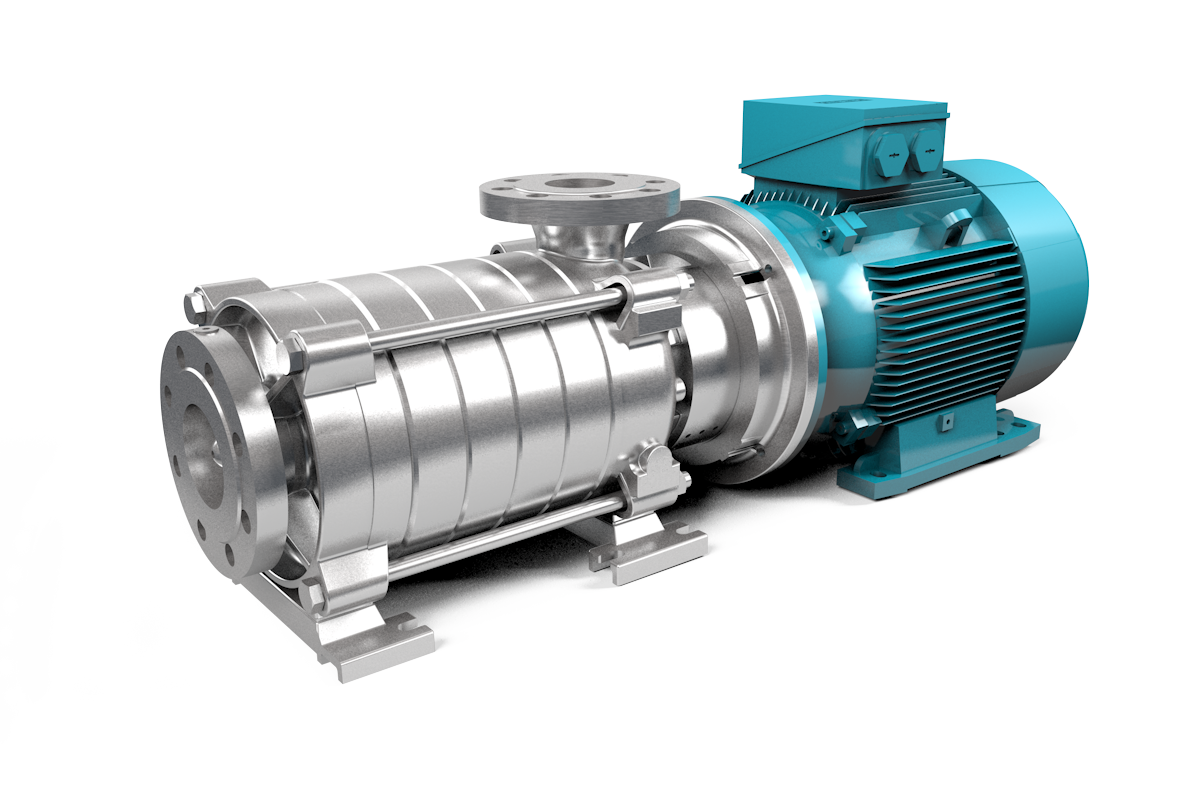

LB -

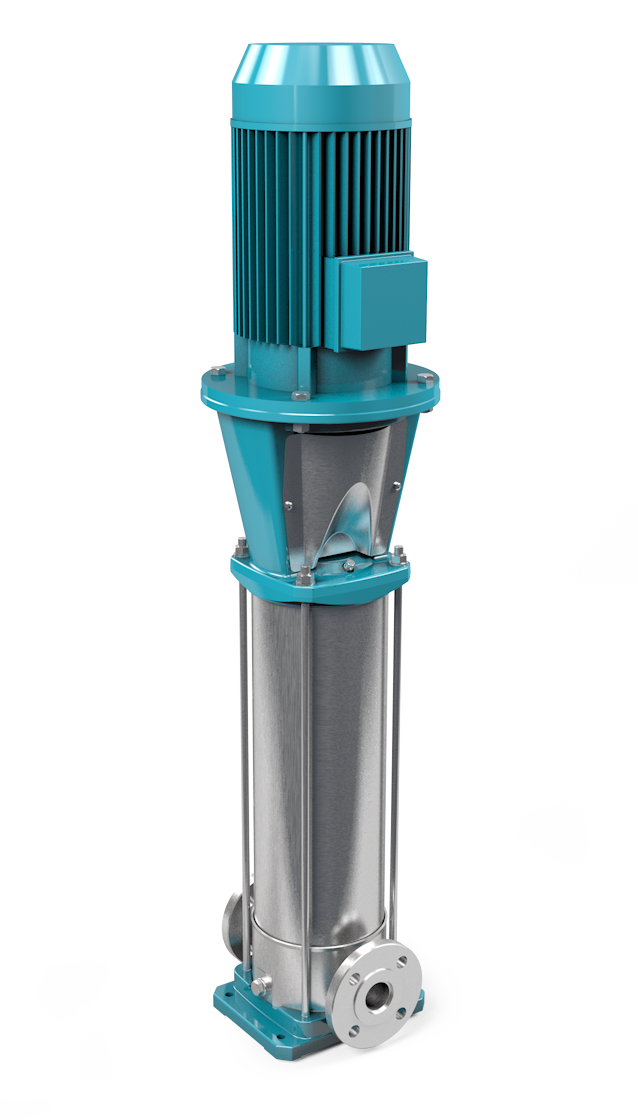

CV10-16 -

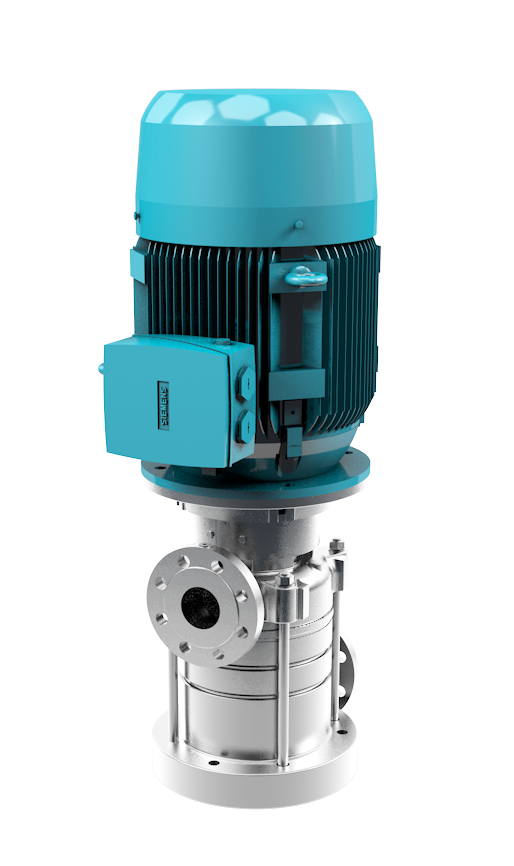

VB
- Advantages

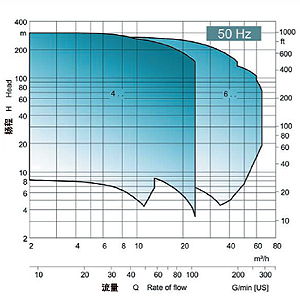

- Performance curves
- Technical Support
Advantages
|
◇High
energy-efficiency Low velocity of flow Optimized impeller approach flow Low internal friction losses Optimized head per stage ◇Easy installation Modular construction system for customized solutions Optional flange positions Horizontal or vertical design Bloc-or bedplate design ◇Easy maintenance |
◇Technical
superiority Open impellers without axial thrust or balanced closed impellers Compensation of radial forces by means Of diffuser devices in the annular casing NPSH inducer stages NPSH inducer stages Partial gas supply Wide performance curve characteristics Flat or steep characteristic curves Excellent control mode ◇Application Operating pressure up to 64bar Temperature -60℃ up to +220℃ Viscosity up to 115 mm2/s |
